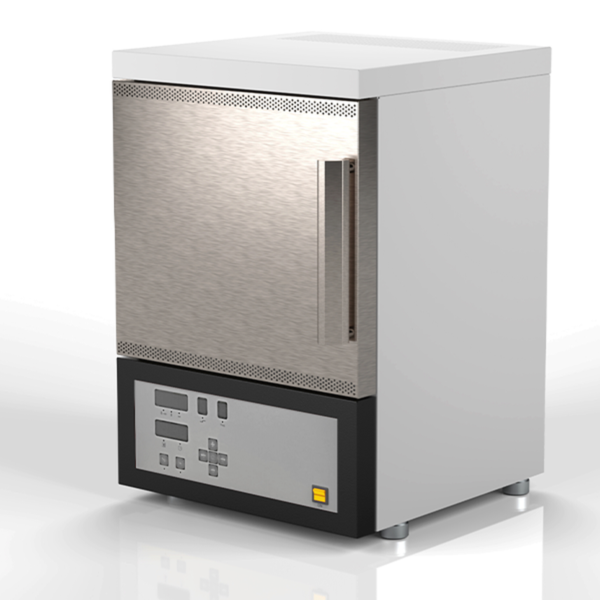

Tizian Furnace 100, Sinter furnace

Description

The Tizian Furnace 100 is ideal for smaller CAD/CAM systems or for supplementing existing sintering furnaces.

The respective capacitiy from one sintering tray Ø = 100 mm. Your sintering program can easily be entered and saved in the program controller. Pre-set service programs support you during the simple maintenance and cleaning of the heating systems.

Designed for conventional long-term sintering. Heating elements made from molybdenum disilicide facilitate a maximum furnace temperature of 1650 °C. Preset service programs help regenerate contamination of the heating elements.

The Tizian Furnace 100₂ is equipped with 4 high-quality molybdenum disilicide heating elements of the latest generation which facilitate a sintering temperature of up to 1650 °C. The regular execution of pre-set service programs can prevent possible discoloration of restorations and increase the life span of the heating elements and the heating chamber.

• molybdenum disilicide heating elements
• Maximum temperature: 1650 °C
• Performance: max. 1500 W
• Voltage range / frequency 220-240 V / 50-60 Hz
• Number of heating elements: 4
• Height of the sintering chamber: 42 cm
• Service programs
  A?-?Temperature control* (only in conjunction with test-kit)
  C – Purge heating chamber
  E- Regenerate heating elements
• Program control (7-Segment LED, 4 stages, 9 program slots, special features)
• Thermo couple PtRh-Pt, type S
• Maximum heating rate 25 °C/min.
• Temperature accuracy at 1500 °C +/- 3 °C
• Timer
• Weight: 55 kg
• Dimensions W/D/H 400/400/600 mm
