Description

Due to a heating system with four high-quality molybdenum heating elements (MoSi₂), the user can choose between conventional long-term sintering and SPEED sintering with a heating rate of 99 °C/min.

The easy and convenient handling of the program control was adopted from the previous series along with all the familiar functions. The programs are displayed on a 4-line LCD display. Further options are a timer function for sintering over night or the use of drying programs for wet machined restorations. Three service programs for the maintenance of the combustion chamber are available.

60 INDIVIDUAL CROWNS OR SINTERING BLANKS

• Molybdenum disilicide heating elements PRO
• Capacity of the combustion chamber 2 x?Ø?120/30 mm
• Program control (LCD-display, 4 levels, 30 program slots, special function)
• Service programs
  A?-?temperature control*
  only in connection with test kit
  C?- Cleaning of the combustion chamber
  E?-?Regeneration heating elements
• Thermo element PtRh-Pt, type S
• Temperature precision at 1500 °C +/- 3 °C
• Timer function

Technical data

• Capacity max. 3200 W
• Max. temperature 1650 °C
• Voltage range / frequency 200-240 V / 50-60 Hz
• Weight 60 kg
• Dimensions w/d/h 390/500/790 mm
• Number of heating elements: 4
• Height of combustion chamber 72 mm

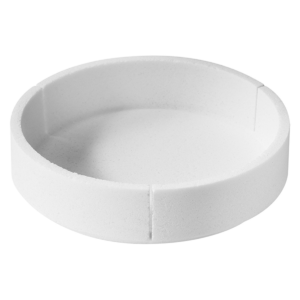

• Sintering trays 120/30 mm
