T55 - Speed Torus drill 1,5 mm for CoCr/Titan three-bladed, 6 mm shaft
T55 - Torus cutter Diameter: Ø 1.5 mmBlade: triple-edgedShaft: Ø 6 mmTotal length: 45 mmBlank material: CoCr, titaniummax. blank height: 16 mmCoating type: coatedFor milling machines: Tizian 3.5 Series, Tizian Cut 5.2 Serie, Tizian Cut 5, CORiTEC 550i, CORiTEC 750i
T88 - Speed bullnose drill universal 1.5mm for CoCr four-bladed, 6 mm shaft
T89 - Bullnose cutter Diameter: Ø 1.5 mmBlade: quadruple-edgedShaft: Ø 6 mmTotal length: 45 mmBlank materila: CoCrCoating type: coatedFor milling systems: Tizian 3.5 Series, Tizian Cut 5.2 Pro, Tizian Cut 5.2 Pro Plus, Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5, CORiTEC 550i, CORiTEC 750i
Tizian 3.5 1,5 mm Premium Rotary Cutter CoCr, T47 for 6 mm chuck
T47 - Torus mill Diameter Ø 1.5 mm Edges double-.edged Shaft Ø 6 mm Total length 45 mm Blank material CoCr, titanium Coating type uncoated For milling machinesTizian Cut 5.2 Pro, Tizian Cut 5.2 Pro Plus, Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5, CORiTEC 550i, CORiTEC 750i
T70/T74 - speed radius drill 3 mm long forCoCr/Titan twin-bladed, 6 mm shaft
T70/T74 - Radius cutter long Diameter: Ø 3 mmBlade: double-edgedShaft: Ø 6 mmTotal length: 45 mmBlank material: CoCr, titaniumCoating type: coatedFor milling systems: Tizian 3.5 Series, Tizian Cut 5.2 Pro, Tizian Cut 5.2 Pro Plus, Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5, CORiTEC 550i, CORiTEC 750i
T88 - Speed bullnose drill HVS 2 mm for CoCr four-bladed, 6 mm shaft
T88 - Speed Bullnose cutter Diameter: Ø 2 mmBlade: quadruple-edgedShaft: Ø 6 mmTotal length: 45 mmBlank material: CoCrCoating type: coatedFor milling systems: Tizian 3.5 Series, Tizian Cut 5.2 Pro, Tizian Cut 5.2 Pro Plus, Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5, CORiTEC 550i, CORiTEC 750i
T71/T75 - Speed radius drill 2 mm long for CoCr/Titan twin-bladed, 6 mm shaft
T71/T75 - Radius cutter longDiameter: Ø 2 mmBlade: double-edgedShaft: Ø 6 mmTotal length: 45 mmBlank material: CoCr, titaniumCoating type: coatedFor milling systems: Tizian 3.5 Series, Tizian Cut 5.2 Pro, Tizian Cut 5.2 Pro Plus, Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5, CORiTEC 550i, CORiTEC 750i
T87/T97 - Speed radius drill 0.6 mm for CoCr/Titan twin-bladed, 6 mm shaft
T87/T97 - Radius cutter Diameter: Ø 0.6 mmBlade: double-edgedShaft: Ø 6 mmTotal length: 45 mmBlank material: CoCr, titaniumCoating type: coatedFor milling systems: Tizian 3.5 Series, Tizian Cut 5.2 Pro, Tizian Cut 5.2 Pro Plus, Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5, CORiTEC 550i, CORiTEC 750i
T56 - Speed torus drill 1 mm for CoCr/Titan three-bladed, 6 mm shaft
Torus cutter Diameter: Ø 1.0 mmBlade: triple-edgedShaft: Ø 6 mmTotal length: 45 mmBlank material: CoCr, titaniummax. blank height: 16 mmCoating type: coatedFor milling systems: Tizian 3.5 Series, Tizian Cut 5.2 Series, Tizian Cut 5, CORiTEC 550i, CORiTEC 750i
T85/T95 - Speed radius drill 1.5 mm for CoCr/Titan four-bladed, 6 mm shaft
T85/T95 - Shaft mill Diameter: Ø 1.5 mmBlade: quadruple-edgedShaft: Ø 6 mmTotal length: 45 mmBlank material: CoCr, titaniumCoating type: coatedFor milling system: Tizian 3.5 Series, Tizian Cut 5.2 Pro, Tizian Cut 5.2 Pro Plus, Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5, CORiTEC 550i, CORiTEC 750i
T86/T96 - Speed radius drill 1 mm for CoCr/Titan twin-bladed, 6 mm shaft
T86/T96 - Radius cutter Diameter: Ø 1 mmBlade: double-edgedShaft: Ø 6 mmTotal length: 45 mmBlank material: CoCr, titaniumCoating type: coatedFor milling systems: Tizian 3.5 Series, Tizian Cut 5.2 Pro, Tizian Cut 5.2 Pro Plus, Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5, CORiTEC 550i, CORiTEC 750i
T44 Tizian 3.5 2.0mm premium torus drill for CoCr/Ti, for 6mm collet chuck (new)
T44 - Torus cutter Diameter Ø 2.0 mm Blade triple-edged Shaft Ø 6 mm Total length 45 mm Blank material CoCr, titanium Coating type coated For milling machines Tizian 3.5 Series (previously: Tizian Cut 5.2 Series), Tizian Cut 5, CORiTEC 550i, CORiTEC 750i
T14/T41/T51 Tizian Cut 5/3.5 Zirconia Drill diamond 1mm, 6 mm shaft
Diamond radius cutter, double-edged, edge Ø 1 mm, shaft Ø 6 mm, total length 53 mm, max. blank height: 25 mm Processing type: fine finishing Blank material: zirconium, nano-composite Type: coated Coding color: gold For the milling machines: Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5 option metal milling (6 mm shaft), CORiTEC 550i, CORiTEC 750i
T13/T40/T50Tizian Cut 5/3.5 Zirconia Drill diamond 2.5mm, 6 mm shaft
Diamond radius cutter, double-edged, edge Ø 2.5 mm, shaft Ø 6 mm, total length 53 mm Processing type: roughing Blank material: zirconium, nano-composite Type: coated Coding color: gold For the milling machines: Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5 option metal milling (6 mm shaft), CORiTEC 550i, CORiTEC 750i
T33/T43/T53 Tizian Cut 5/3.5 Zirconium/PMMA/Wax fissures-mill 0,3mm, 6mm shaft
Radius cutter double-edged, edge Ø 0.3 mm, shaft Ø 6 mm, total length 45 mm, max. blank height: 25 mm Processing type: removal of material residue Blank material: zirconium dioxide, PMMA, wax Coating type: coated Ring color: gold For milling machines: Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5 option metal milling (6 mm shaft), CORiTEC 550i, CORiTEC 750i
T48 Tizian 3.5 2 mm Premium Radius 4-Cutter for CoCr, T48 for 6 mm chuck
T48 - Torus mill Diameter Ø 2.0 mm Edges quadruple-edged Shaft Ø 6 mm Total length 45 mm Blank material CoCr Coating type uncoated For milling machines Tizian Cut 5.2 Pro, Tizian Cut 5.2 Pro Plus, Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5, CORiTEC 550i, CORiTEC 750i
Tizian 3.5 0,6 mm premium radius cutter for CoCr/Ti, T20, for 6 mm chuck
T20 radius mill, double edged, edge Ø 1.0 mm, shaft Ø 6 mm, max. blank height = 25 mm. Robust tool for milling in the occlusal area. Finishing type: fine finishing Blank material: CoCr, titanium Coating type: coated Ring color gold For milling machines: Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5.2 Pro, Tizian Cut 5.2 Pro plus, CORiTEC 550i, CORiTEC 750i
Tizian 3.5 2,0 mm premium radius cutter for CoCr/Ti, T2/T7, for 6 mm chuck
T2/T7, mill for pre-finishing, two-edged, edge Ø 2.0 mm, shaft Ø 6 mm, max. blank height = 25 mm. Finishing type: pre-finishing Blank material: CoCr, titanium Coating type: coated Ring color gold For milling machines: Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5.2 Pro, Tizian Cut 5.2 Pro plus, CORiTEC 550i, CORiTEC 750i
T3/T8 Tizian 3.5 1,5 mm premium radius cutter for CoCr/Ti, T3/T8, for 6 mm chuck
Diamond radius cutter, double-edged, edge Ø 1.5 mm, shaft Ø 6 mm, total length 53 mm, max. blank height 22 mm
T46 Tizian 3.5 1.0 mm premium torus drill for CoCr/Ti, T46, for 6 mm chuck
T46 - Torus drill, triple-edged, edge Ø 1.0 mm, shaft Ø 6 mm, total length 45 mm. Blank material: CoCr, titanium Coating type: coated For milling machines: Tizian Cut 5.2 Pro, Tizian Cut 5.2 Pro Plus, Tizian Cut 5.2, Tizian Cut 5.2 plus, CORiTEC 550i, CORiTEC 750i
T4/T) Tizian 3.5 1,0 mm premium radius cutter for CoCr/Ti, T4/T9, for 6 mm chuck
Diamond radius cutter, double-edged, edge Ø 1 mm, shaft Ø 6 mm, max. blank height: 15 mm
Tizian 3.5 1.5mm Premium torus mill for CoCr/Ti, T45, for 6mm chuck
T45 - Torus cutter for bars and abutments, triple-edged, cutting edge Ø 1.5 mm, shaft Ø 6 mm, total length 45 mm. Processing type: pre-finishing Blank material: CoCr, titanium Coating type: coated For milling machines: Tizian Cut 5.2 Pro, Tizian Cut 5.2 Pro Plus, Tizian Cut 5.2, Tizian Cut 5.2 plus, CORiTEC 550i, CORiTEC 750i
Tizian 3.5 3,0 mm premium radius cutter for CoCr/Ti, T1/T6, for 6 mm chuck
Variante:
T1/T6 - Premium Radiusfräser 3,0mm für CoCr/Ti
T1/T6 and T26 radius cutter, two-edged, edge Ø 3.0 mm, shaft Ø 6 mm, max. blank height = 16 mm respectively 25 mm. For a blank height of 16 mm or higher, we recommend the use of T26 (art.-no. 523985) Finishing type: rough pre-machining Blank material: CoCr, titanium Coating type: coated Ring color gold For milling machines: Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5.2 Pro, Tizian Cut 5.2 Pro plus, CORiTEC 550i, CORiTEC 750i
T62 Tizian Cut 5/ 3.5 torus drill 2.0 mm for CoCr/ Titan, 4-bladed, 6 mm shaft
T62 - Torus cutter Diameter Ø 2.0 mm Quadruple-edged Shaft Ø 6 mm Total length 45 mm Max. blank height: 15 mm Blank material CoCr, titanium Coating type uncoated For milling machines Tizian Cut 5.2 Pro, Tizian Cut 5.2 Pro Plus, Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5, CORiTEC 550i, CORiTEC 750i
T32 Tizian Cut 5/3.5 radius cutter for zirconia/PMMA/Wax, 0.6 mm, 6 mm shaft
T32 double-edged radius cutter, long, edge Ø 0.6 mm, shaft Ø 6 mm, max. blank height = 25 mm. Processing type: fine finishing Blank material: zirconium dioxide, PMMA, wax Coating type: uncoated Ring color: gold For milling machines: Tizian Cut 5, Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5.2 Pro, Tizian Cut 5.2 Pro plus, CORiTEC 550i, CORiTEC 750i
T35 Tizian Cut 5/3.5 radius cutter long for PMMA/Wax 2 mm, 6 mm shaft
T35 - Radius cutter Diameter Ø 2.0 mm Cutting edge double-edge Shaft Ø 6 mm Cutting length: l = 20 mm Total length: 45 mm Max. blank height: 30 mm Blank material: PMMA, wax Coating type: uncoated For milling machines: Tizian Cut 5.2 Series, Tizian Cut 5, CORiTEC 550i, CORiTEC 750i
T34 Tizian Cut 5/3.5 radius cutter long for PMMA/Wax 3 mm, 6 mm shaft
T34 - Radius cutter Diameter Ø 3.0 mm Cutting edge double-edge Shaft Ø 6 mm Cutting length: l = 27 mm Total length: 45 mm Max. blank height: 30 mm Blank material: PMMA, wax Coating type: uncoated For milling machines: Tizian Cut 5.2 Serie, Tizian Cut 5, CORiTEC 550i, CORiTEC 750i
T49 Tizian 3.5 1,5 mm Premium Torus drill for CoCr, T49 for 6 mm chuck
T49 - Torus mill Diameter Ø 1.5 mm Edges triple-edged Shaft Ø 6 mm Total length 45 mm Blank material CoCr, titanium Coating type uncoated For milling machines Tizian Cut 5.2 Pro, Tizian Cut 5.2 Pro Plus, Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5, CORiTEC 550i, CORiTEC 750i
T67 Tizian Cut 5/3.5 shaft drill 2 mm for Titan/CoCr, 6 mm shaft
T67 - Shaft cutter Diameter Ø 2.0 mm Cutting edges quadruple-edge Shaft Ø 6 mm Cutting length: l = 7 mm Total length: 45 mm Max. blank height: 15 mm Blank material: CoCr, titanium Coating type: coated For milling machines: Tizian Cut 5.2 Series, Tizian Cut 5, CORiTEC 550i, CORiTEC 750i
Tizian 3.5 1,5 mm premium flat drill for CoCr/Ti, T5/T10, for 6 mm chuck
T5/T10 shaft mill, two-edged, edge Ø 1.5 mm, shaft Ø 6 mm, max. blank heights = 25 mm. Finishing type: drilling screw threads, production of screw bearings Blank material: CoCr, titanium Coating type: coated Ring color gold For milling machines: Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5.2 Pro, Tizian Cut 5.2 Pro plus, CORiTEC 550i, CORiTEC 750i
T29 Tizian Cut 5/3.5 Radius Cutter long for CoCr/Titanium 1,0mm, 6 mm shaft
End mill long, double-edged, edge Ø 1 mm, shaft Ø 6 mm, total length 53 mm. Max. blank height = short up to 15 mm, long up to 20 mm. Processing type: fine finishing Blank material: CoCr, titanium Type: coated Coding color: gold For the milling machines: Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5 option metal milling (6 mm shaft), CORiTEC 550i, CORiTEC 750i
T20 Tizian Cut 5/3.5 Metal mill for CoCr/Titanium 0.6mm, 6 mm shaft
Fissure mill, double-edged, edge Ø 0.6 mm, shaft Ø 6 mm, total length 45 mm. Processing type: removal of material residue Blank material: CoCr, Titan Coating type: coated Ring color: gold For milling machines: Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5 metal option (6 mm shaft), CORiTEC 550i, CORiTEC 750i
T15/T42T52 Tizian Cut 5/3.5 Zirconia / PMMA drill 0.6mm, 6 mm shaft
Radius cutter, double-edged, edge Ø 0.6 mm, shaft Ø 6 mm, total length 53 mm, max. blank height: 25 mm Processing type: removal of residual material Blank material: zirconium, PMMA, wax, Lava Ultimate from 3M Espe, Tizian Zirconia Reinforced Composite Type: uncoated Coding color: gold For the milling machines: Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5 option metal milling (6 mm shaft), CORiTEC 550i, CORiTEC 750i
T17 Tizian Cut 5/3.5 for zirconia/wax/PMMA drill 1,5 mm, 6 mm shaft
End mill/ torus mill long, double-edged, edge Ø 1.5 mm, shaft Ø 6 mm, total length 53 mm. Max. blank height = short up to 15 mm, long up to 20 mm. Processing type: fabrication of screw seating Blank material: Zirconcium dioxide, wax, PMMA Coating type: coated Coding color: gold For the milling machines: Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5 with metal milling option (6 mm shaft), CORiTEC 550i, CORiTEC 750i
T3/T8 Tizian Cut 5/3.5 ball-headed metal drill 1,5, CoCr/Ti balltop
Ball-end mill, double-edged, edge Ø 1.5 mm, shaft Ø 6 mm, total length 48 mm Processing type: drilling a screw channel Blank material: CoCr, titanium Type: coated Coding color: gold For the milling machines: Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5 option metal milling (6 mm shaft), CORiTEC 550i, CORiTEC 750i
T4/T9 Tizian Cut 5/3.5 Metal Drill CoCr/Ti 1mm, 6 mm shaft
Radius cutter short, double-edged, edge Ø 1 mm, shaft Ø 6 mm, total length 45 mm. Max. blank height = short up to 15 mm, long up to 20 mm. Processing type: fine finishing Blank material: CoCr, titanium Type: coated Coding color: gold For the milling machines: Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5 option metal milling (6 mm shaft), CORiTEC 550i, CORiTEC 750i
T18-Tizian Cut 5/3.5 radius cutter universal 0.5 mm, 6 mm shaft
T18 - Radius cutter Diameter Ø 0.5 mm Cutting edges double-edge Shaft Ø 6 mm Cutting length: l = 4 mm Total length: 45 mm Blank material: universal Max. blank height: 15 mm Coating type: coated For milling machines: Tizian Cut 5.2 Series, Tizian Cut 5, CORiTEC 550i, CORiTEC 750i
T61 Tizian Cut 5/3.5 radius cutter 3.0 mm for Titan/CoCr, 4-bladed, 6 mm shaft
T61 - metal roughing tool The complex geometry of the four high-capacity cutting edges (this is not a radius cutter!) facilitate a smooth operation, a much better service life and time savings of up to 50 % during the roughing procedure. Metal restorations are manufactured within ca. 10-15 min. in extraordinary quality. Please note that the special cutter geometry requires a new strategy and new tool data in the CAM software. This tool does not replace the reliable T6! Diameter Ø 3.0 mm Cutting edges quadruple edge Shaft Ø 6 mm Cutting length: l = 15 mm Total length: 45 mm Max. blank height: 15 mm Blank material: CoCr, titanium Coating type: coated For milling machines: Tizian Cut 5.2 Series, Tizian Cut 5, CORiTEC 550i, CORiTEC 750i
T63 Tizian Cut 5/ 3.5 torus drill 1.5 mm (I = 7 mm) for CoCr/ Titan, twin-bladed, 6 mm shaft
T63 - Torus mill Diameter Ø 1.5 mm Edges double-edged Shaft Ø 6 mm Operating length l = 7 mm Total length 45 mm Blank material CoCr, Titan Coating type uncoated For milling machines Tizian Cut 5.2 Pro, Tizian Cut 5.2 Pro Plus, Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5, CORiTEC 550i, CORiTEC 750i
T19-Tizian Cut 5/3.5 drill universal 0.5 mm, 6 mm shaft
T19 - Shaft cutter Diameter Ø 0.5 mm Cutting edge double-edge Shaft Ø 6 mm Cutting length: l = 4 mm Total length: 45 mm Blank material: universal Max. blank height: up to 15 mm Coating type: uncoated For milling machines: Tizian Cut 5.2 Series, Tizian Cut 5, CORiTEC 550i, CORiTEC 750i

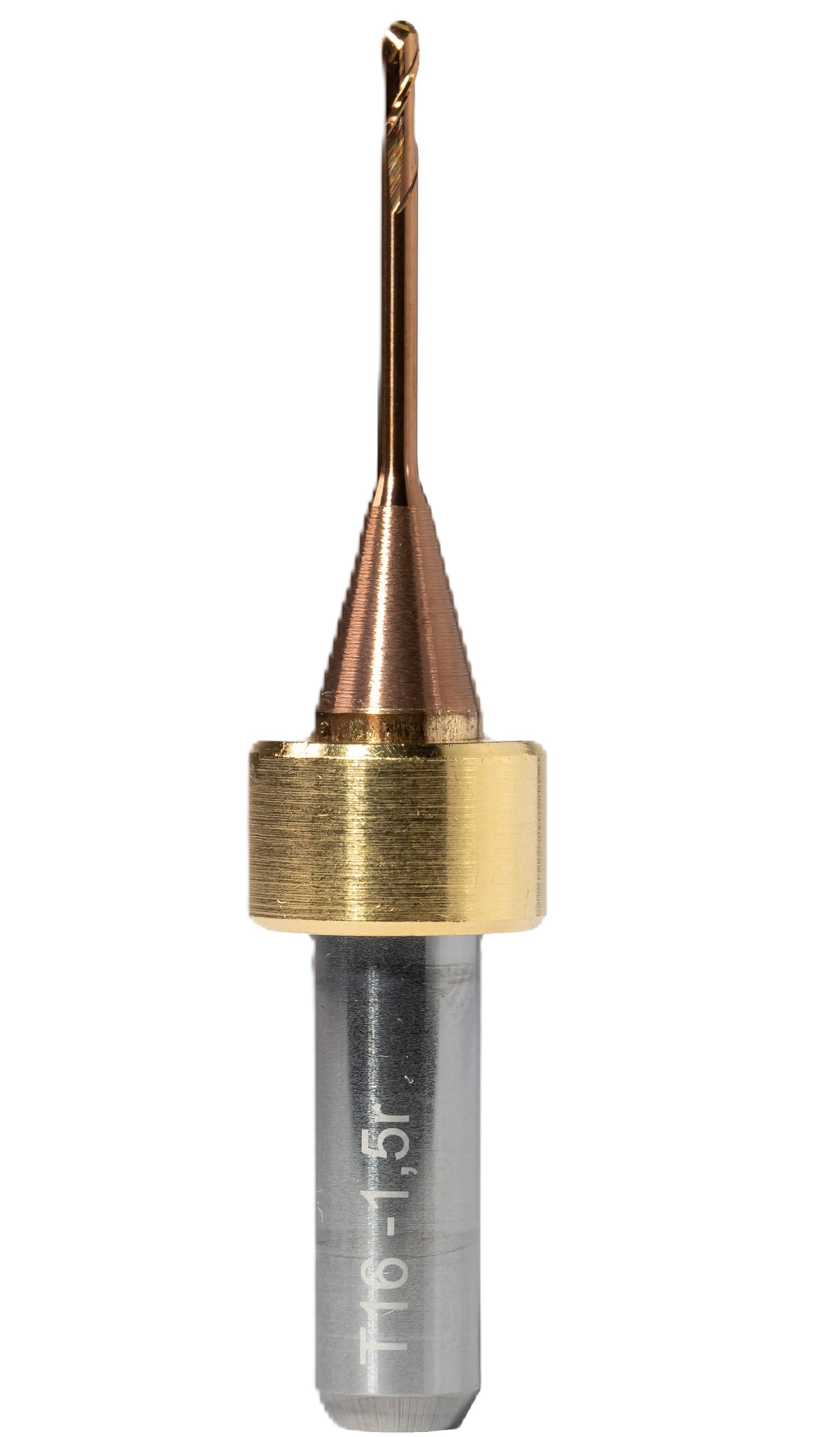

T16 - Radius milling cutter 1.5 mm long for zircon/PMMA/wax, for Tizian Cut 5/3.5 for 6mm collet chuck
Ø 1.5 mm Blade double-edged Shaft Ø 6 mm Max. blank height: 25 mm Blank material: zirconium, PMMA, wax Coating type: uncoated For milling systems: Tizian 3.5 Series (previously: Tizian Cut 5.2 Series), Tizian Cut 5, CORiTEC 550i, CORiTEC 750i
T98 Tizian Cut 5/3.5 shaft drill 2.5 mm for calibration, 6 mm shaft
T98 - Shaft cutter for the calibration of your Tizian Milling System Diameter Ø 2.5 mm Cutting edges triple-edge Shaft Ø 6 mm Cutting length: l = 20 mm Total length: 45 mm Coating type: uncoated For milling machines: Tizian Cut 5.2 Series, Tizian Cut 5, CORiTEC 550i, CORiTEC 750i
T81 Tizian Cut 5/3.5 drilling tool 1.5 mm for Titan/ CoCr, 6 mm shaft
T81 - Drilling tool Diameter Ø 1.5 mm Cutting edges triple-edge Shaft Ø 6 mm Cutting length: l = 18 mm Total length: 45 mm Max. blank height: 20 mm Blank material: CoCr, Titan Coating type: coated For milling machines: Tizian Cut 5.2 Series, Tizian Cut 5, CORiTEC 550i, CORiTEC 750i
T80 Tizian Cut 5/3.5 drilling tool 2.5 mm for Titan/ CoCr, 6 mm shaft
T80 - Drilling tool Special implant structures Diameter Ø 2.5 mm Cutting edges triple-edge Shaft Ø 6 mm Cutting length: l = 22 mm Total length: 45 mm Max. blank height = 20 mm Blank material: CoCr, titanium Coating type: coated For milling machines: Tizian Cut 5.2 Series, Tizian Cut 5, CORiTEC 550i, CORiTEC 750i
T64 - torus drill 1.5 mm (I = 15 mm) for CoCr/ Titan, Tizian Cut 5.2/ 3.5 for 6 mm chuck
T63 - Torus mill Diameter Ø 1.5 mm Edges double-edged Shaft Ø 6 mm Operating length l = 15 mm Total length 45 mm Max. blank height: 15 mm Blank material CoCr, Titan Coating type uncoated For milling machines Tizian Cut 5.2 Pro, Tizian Cut 5.2 Pro Plus, Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5, CORiTEC 550i, CORiTEC 750i
T11/T13 Tizian Cut 5/3.5 Zirconia/PMMA drill 2.5mm, 6 mm shaft
Radius cutter, double-edged, edge Ø 2.5 mm, shaft Ø 6 mm, total length 53 mm Processing type: roughing Blank material: zirconium, PMMA, wax, Lava Ultimate from 3M Espe, Tizian Zirconia Reinforced Composite Type: uncoated Coding color: gold For the milling machines: Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5 option metal milling (6 mm shaft), CORiTEC 550i, CORiTEC 750i
T11 Tizian Cut 5/3.5 PMMA finemilling single point mill, 2,5 mm, 6 mm shaft
Radius cutter single-edged, edge Ø 2.5 mm, shaft Ø 6 mm, total length 53 mm, max. blank height = 25 mm. Processing type: pilot milling Blank material: PMMA, PEEK Coating type: uncoated Ring color: gold For milling machines: Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5 option metal milling (6 mm shaft), CORiTEC 550i, CORiTEC 750i
T27 Tizian Cut 5/3.5 Radius Cutter long for CoCr/Titanium 2,0mm, 6 mm shaft
Radius cutter, double-edged, edge Ø 2 mm, shaft Ø 6 mm, total length 53 mm. Max. blank height = short up to 15 mm, long up to 20 mm. Processing type: roughing Blank material: CoCr, titanium Type: coated Coding color: gold For the milling machines: Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5 option metal milling (6 mm shaft), CORiTEC 550i, CORiTEC 750i
T12 Tizian Cut 5/3.5 PMMA finemilling single point mill, 1,0mm, 6 mm shaft
Radius cutter single-edged, edge Ø 1 mm, shaft Ø 6 mm, total length 53 mm, max. blank height = 25 mm. Processing type: fine finishing Blank material: PMMA, PEEK Coating type: uncoated Ring color: gold For milling machines: Tizian Cut 5.2, Tizian Cut 5.2 plus, Tizian Cut 5 option metal milling (6 mm shaft), CORiTEC 550i, CORiTEC 750i
